90° Silicone Elbows

90° Silicone Elbows

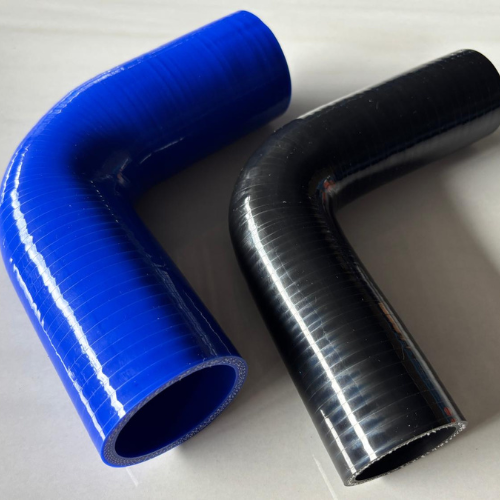

Standard 90° Silicone Coolant Elbows

Uses: Designed to use in high performance coolant application.
Features:

3/4 plies or custom ply construction with woven / knitted polyester reinforcement to meet flexibility and burst strength requirement.
Working Temperature -55ºC to + 180ºC.
Material properties & performance as per SAE J20 R1 H1 Class A.

Category: Silicone Hoses

Description

Description

Sizes

Sr.No.	Hose ID,(mm)	Leg length 1(mm)	Leg length 2(mm)	Wall Thickness (mm)	No. of Plies
1	9.5	150	150	4	3
2	11	150	150	4	3
3	13	150	150	4	3
4	16	150	150	4	3
5	19	150	150	4	3
6	22	150	150	4	3
7	25	150	150	4	3
8	28	150	150	4	3
9	30	150	150	4	3
10	32	150	150	4	3
11	35	150	150	4	3
12	38	150	150	4	3
13	41	150	150	4	3
14	45	150	150	4	3
15	48	150	150	4	3
16	51	150	150	5	4
17	54	150	150	5	4
18	57	150	150	5	4
19	60	150	150	5	4
20	63	150	150	5	4
21	65	150	150	5	4
22	68	150	150	5	4
23	70	150	150	5	4
24	76	150	150	5	4
25	80	150	150	5	4
26	83	150	150	5	4
27	90	150	150	5	4
28	102	150	150	5	4
29	114	150	150	5	4
30	127	150	150	5	4
31	152	150	150	5	4
